2005 AquaMaster micro sprinkler

Efficient Watering for Lawns & Gardens

2005 AquaMaster

Aqua Master - Jain Irrigation Systems

Specification

  • Flow Rates (lph): 30 to 365

  • Working Pressure(kg/cm²) : 1.5 to 3.0

  • Weteed Diameter (m): 2.0 to 12.5

Applications

  • The most economical solution for under tree and overhead irrigation

  • Particularly suitable for widely-spaced plantations, (such as walnut, almond, avocado and mango)

  • Suitable also for overhead irrigation on Rainport system for vegetables and nurseries (up to 6 x 6 m spacing)


2005 Aqua Master 1 - Jain Irrigation Systems2005 Aqua Master 2 - Jain Irrigation Systems

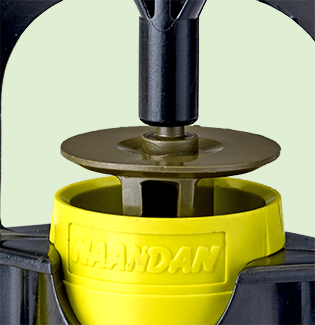

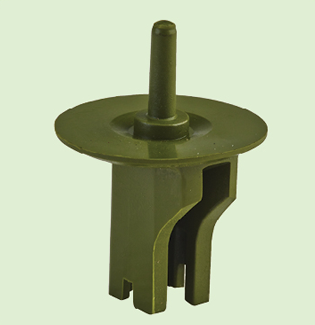

Unique Swivel DesignUnique water swivel for optimum distribution, maximum range and fine droplets

Insect Proof Popup Swivel Innovative structure for improved durability, performance and Popup action for insect protection

2005 Aqua Master 3 - Jain Irrigation Systems2005 Aqua Master 4 - Jain Irrigation Systems

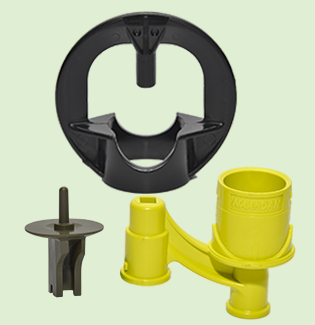

Easy to Dismantle and Assemble Offers ease in maintenance & inspection

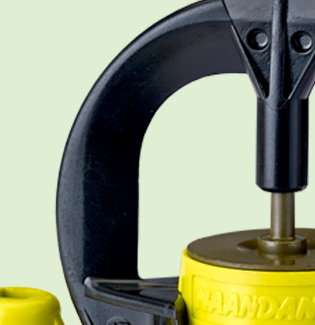

Specially Designed Side Ribs Smooth streamlined side ribs to secure the spinner and give minimum obstruction to water jet

2005 Aqua Master 5 - Jain Irrigation Systems2005 Aqua Master 6 - Jain Irrigation Systems

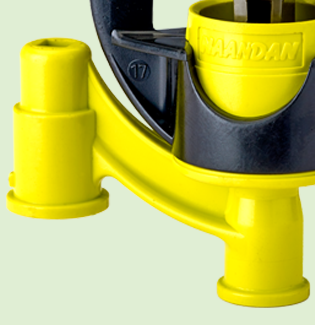

No Need of Adaptor Sprinkler has inbult sprinkler adaptor for 6mm riser rod support facility

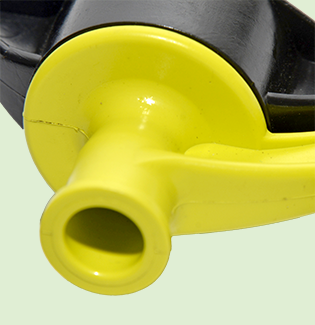

Tapered Inlet Connection Available in push-fit / tapered inlet connection for ease connectivity with assembly. Can also be supplied with 3/8" thread and 1/2" thread connection.
